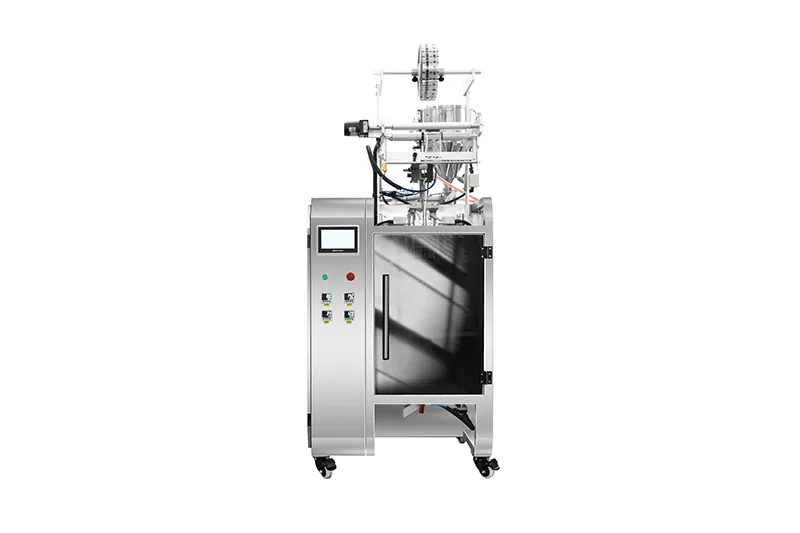

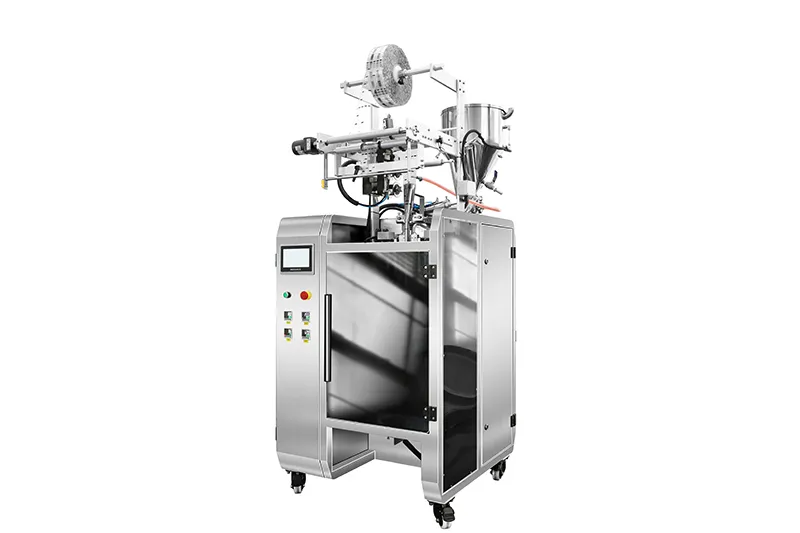

Sachet Liquid Packaging Machine
Sachet Liquid Packaging Machine
Single-Lane Sachet Machines

Sachet Liquid Packaging Machine

Vertical Form Fill Seal Machines for Liquids and Viscous Products

Packaging Lane
1
Dosing System
Piston Pump
Sachets Per Hour
1200-2400
Film Roll Width
Up to 170mm
Sachet Size (Length × Width)
50-160mm × 16-80mm
Request a Quote

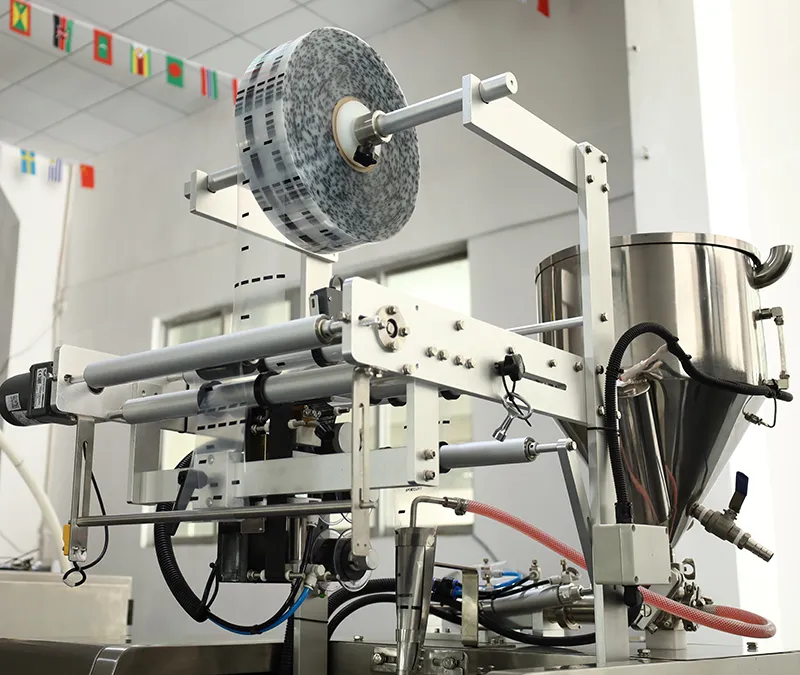

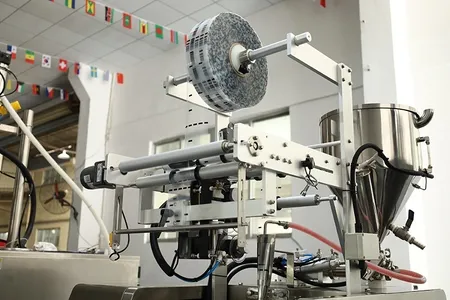

Film feeding and dosing system
Film feeding and dosing system

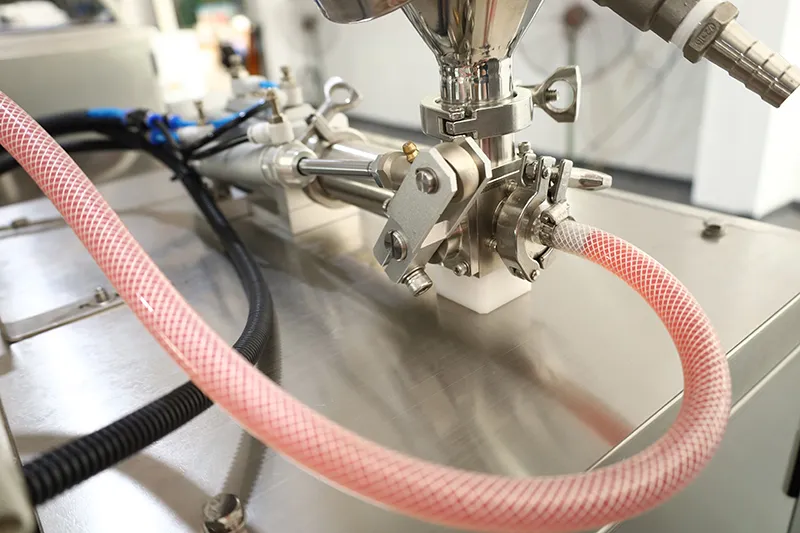

Liquid feeding tube
Liquid feeding tube

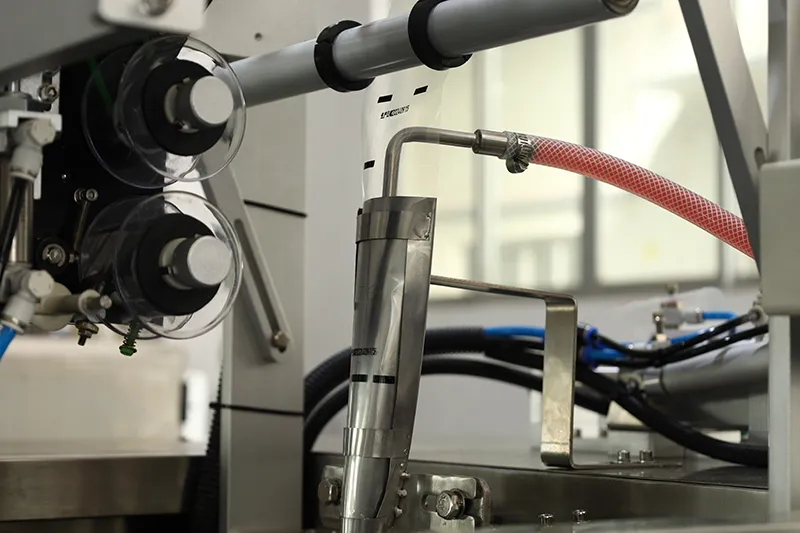

Bag former
Bag former

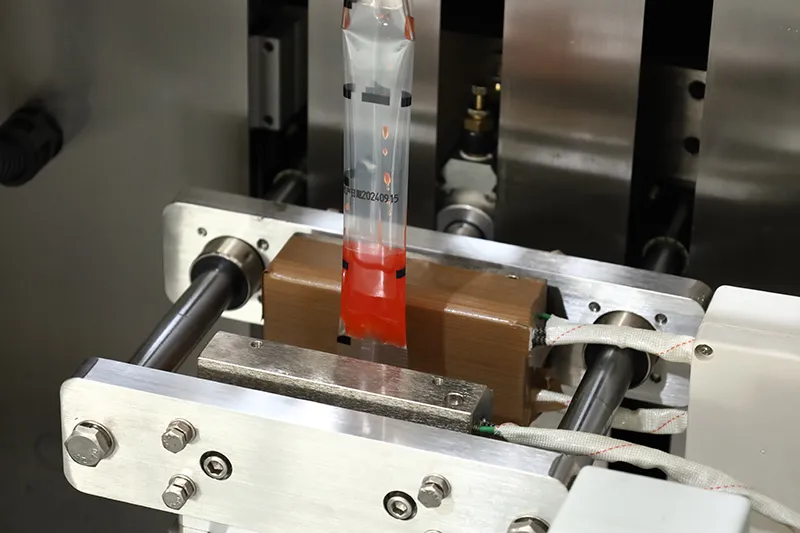

Round corner cutter
Round corner cutter

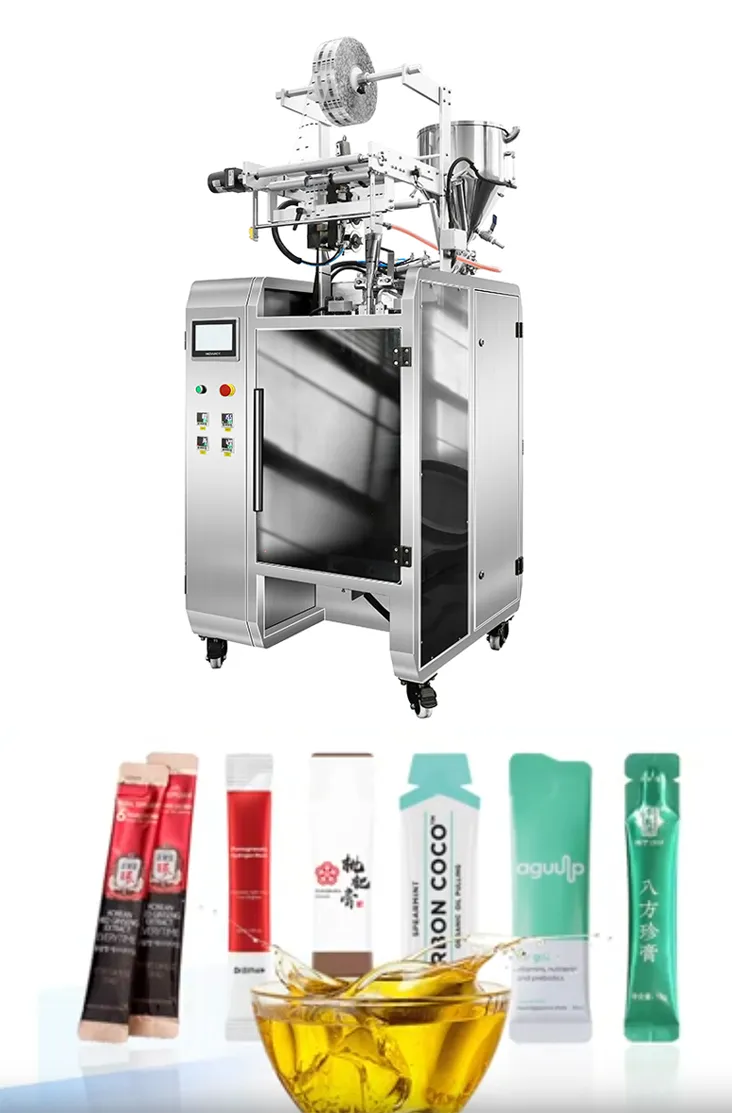

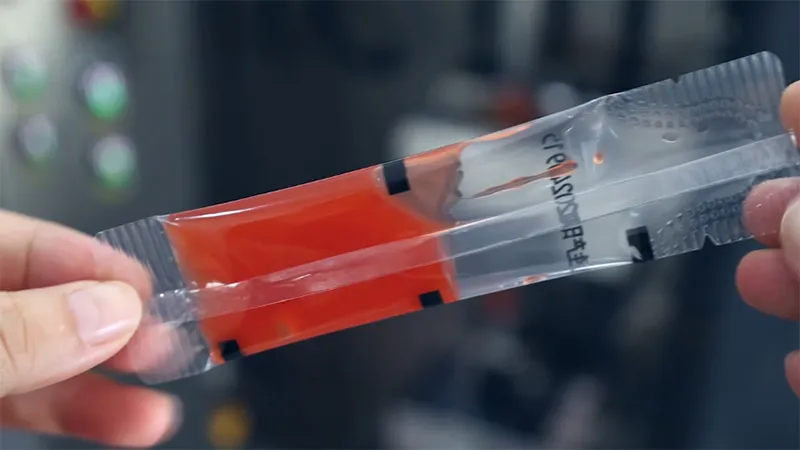

Sachet Liquid Packaging Machine
Sachet Liquid Packaging Machine Introduction
Applications

Our packaging machine is highly versatile and perfectly suited for your needs across various industries, including cosmeceuticals, food, pharmaceuticals, and health supplements. It’s ideal for packaging products such as sauces, seasonings, hot pot bases, ketchup, honey, jam (with fruit pieces), creams, facial cleansers, and body washes.

  • Olive oilOlive oil
  • Soy sauceSoy sauce
  • HoneyHoney
  • MilkMilk
  • Lemon juiceLemon juice
  • Jam (with fruit pieces)Jam (with fruit pieces)
  • Goji berry pureeGoji berry puree
  • Sea buckthorn pureeSea buckthorn puree
Features

Our packaging machine is designed with advanced features to elevate your production experience:

  • Effortless Cleaning: Equipped with high-efficiency anti-fingerprint technology, making maintenance easier for you.
  • Precision and Speed: Features a programmable bus system and bus servo for faster and more accurate operations.
  • Perfect Packaging: Color sensors ensure precise alignment of packaging film color marks for complete and flawless patterns.
  • Industry 4.0 Ready: Connects smoothly to SCADA and MES systems, aligning with modern smart manufacturing standards
  • User-Friendly Interface: Offers fault alerts, self-diagnostic functionality, and supports 12 commonly used operation languages for your convenience.
  • Certifications You Trust: Complies with GMP production standards, EU CE certification, and CUL certification for electrical components.
  • Durable Build: Made with SUS304 stainless steel and aluminum alloy, with all material-contact parts crafted from SUS304 for hygiene and reliability.
  • Precise Temperature Control: Independent bus-based temperature module with precision control within ±0.1°C. All temperature settings and displays are easily managed via the touchscreen interface.
  • Smart Detection Systems: Includes automatic film break and film shortage detection with alarm and shutdown capabilities, along with film correction and splicing features.
Stick Pack Packaging Machines

This product is ideal for your single-lane quantitative filling and packaging requirements for solid-liquid paste mixtures, standard liquids, or semi-fluid substances. Equipped with a piston pump dosing system, it accommodates your packaging needs with a maximum film width of 170mm, producing liquid packaging bags between 16–80mm in width and 50–160mm in length. With adjustable dosing and a rotary replenishment system, it ensures precision and efficiency for your operations, achieving production speeds of 20–40 packs per minute. Designed with your convenience in mind, the machine is easy to operate, delivers high filling accuracy, and offers exceptional versatility. Additionally, all components that come into contact with your packaged materials can be quickly disassembled and reassembled, making maintenance straightforward and hassle-free.

Powder Packaging Machine

Seal Type: Back Seal, 3 Side Seal, 4 Side Seal

Single-Lane Back Seal Sachet Liquid Packaging Machine

(VFFS Machine for Liquids and Viscous Products)

Model LC200B+9832G-06N
Number of Packaging Lanes 1
Dosing System Piston Pump
Packaging Speed 1200-2400 sachets/hour
Film Roll Width Max.170mm
Inner Diameter of Film Roll 75mm
Outer Diameter of Film Roll Max.300mm
Sachet Width 16-80mm
Sachet Length 50-160mm
Seal Type Back Seal
Cut Type Round Cut, Straight Cut, Zigzag Cut
Power Supply 220V, 1P, 50/60HZ, 5kW
Air Pressure (Consumption) 0.6-0.8MPa (17-25L/min)
Machine Weight Approx. 300kg
Inquiry
Single-Lane 3 Side Seal Sachet Liquid Packaging Machine

(VFFS Machine for Liquids and Viscous Products)

Model LC200BS+9832G-06N
Number of Packaging Lanes 1
Dosing System Piston Pump
Packaging Speed 1200-2400 sachets/hour
Film Roll Width Max.160mm
Inner Diameter of Film Roll 75mm
Outer Diameter of Film Roll Max.300mm
Sachet Width 16-80mm
Sachet Length 50-160mm
Seal Type 3 Side Seal
Cut Type Round Cut, Straight Cut, Zigzag Cut
Power Supply 220V, 1P, 50/60HZ, 5kW
Air Pressure (Consumption) 0.6-0.8MPa (17-25L/min)
Machine Weight Approx. 300kg
Inquiry
Single-Lane 4 Side Seal Sachet Liquid Packaging Machine

(VFFS Machine for Liquids and Viscous Products)

Model LC200F+9832G-06N
Number of Packaging Lanes 1
Dosing System Piston Pump
Packaging Speed 1200-2400 sachets/hour
Film Roll Width Max.160mm
Inner Diameter of Film Roll 75mm
Outer Diameter of Film Roll Max.300mm
Sachet Width 30-80mm
Sachet Length 50-160mm
Seal Type 4 Side Seal
Cut Type Round Cut, Straight Cut, Zigzag Cut
Power Supply 220V, 1P, 50/60HZ, 5kW
Air Pressure (Consumption) 0.6-0.8MPa (17-25L/min)
Machine Weight Approx. 300kg
Inquiry
