This machine is perfect for your diverse packaging needs in industries such as pharmaceuticals, food, nutraceuticals, and personal care. It's ideal for packaging products like sugar, pharmaceutical granules, coffee granules, and granular desiccants.
Yellow sugar
Salt
White sugar
Powder
Probiotics
Desiccant
Pepper
SeaweedOur packaging machine is designed with advanced features to elevate your production experience:

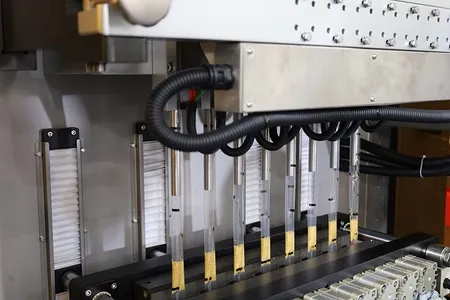

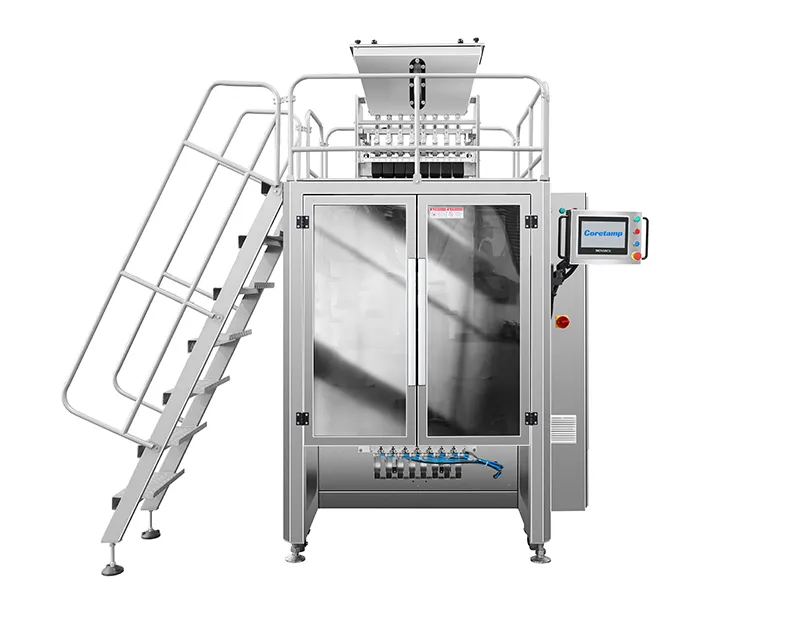

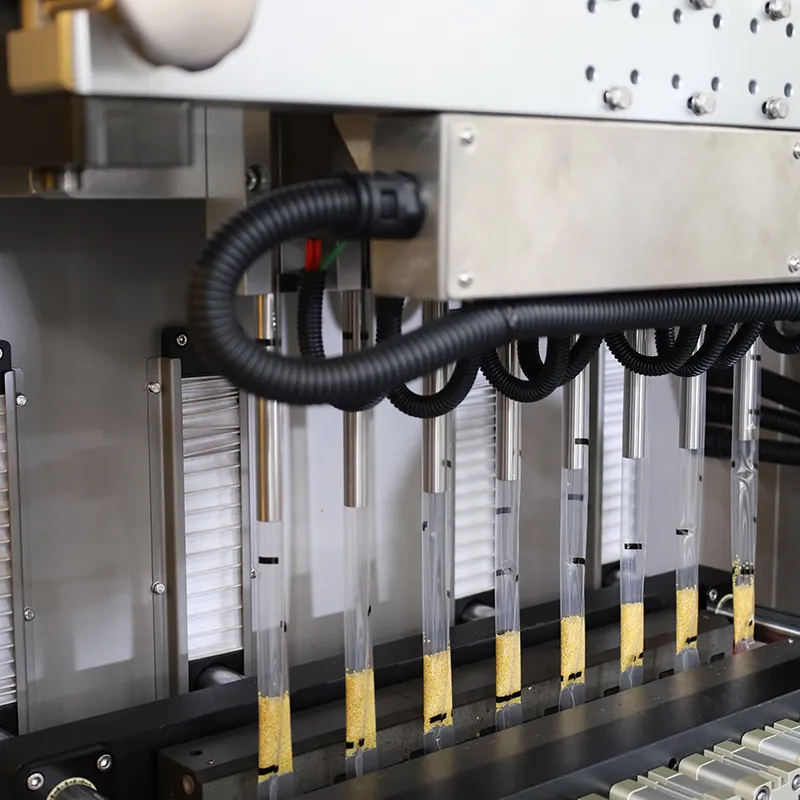

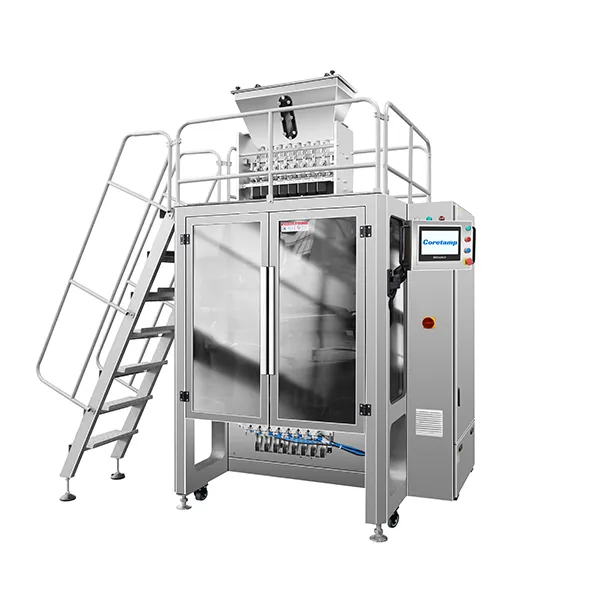

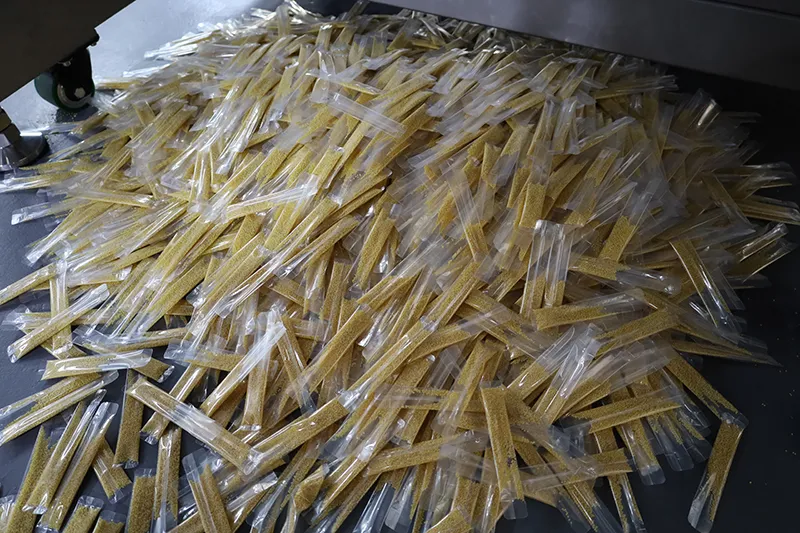

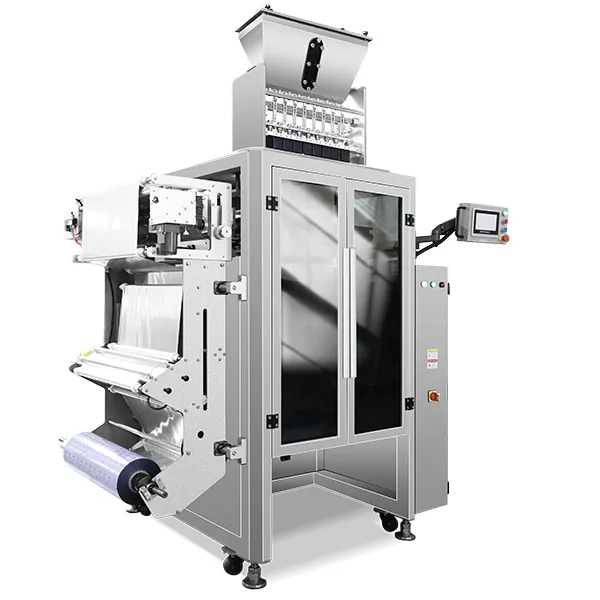

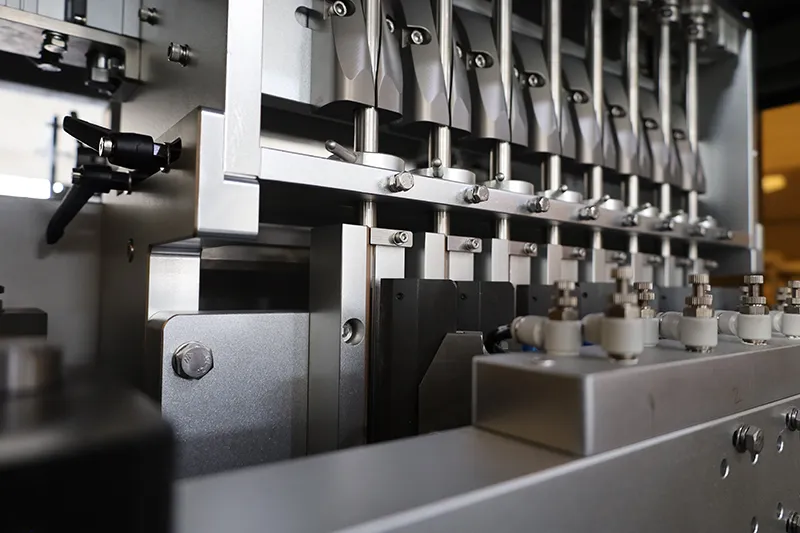

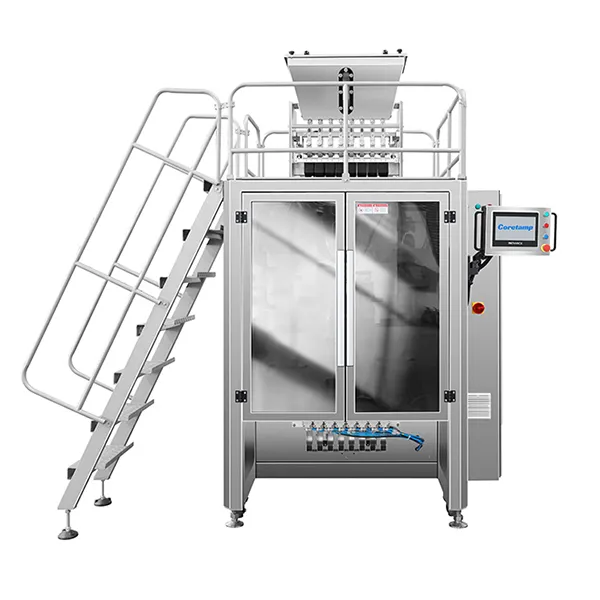

This machine is ideal for your multi-lane packaging requirements, handling uniform granular materials with unmatched precision across 4 to 10 lanes. It features a volume-based dosing system with high-accuracy SUS316L stainless steel cups, ensuring exceptional precision and high-speed filling.With a maximum roll film width of 800mm, the machine produces granular packaging bags ranging from 16-50mm in width and 40-160mm in length. Each lane's dosing can be independently adjusted, and the alternating refill method guarantees speed and accuracy. Operating at a speed of 20-80 cuts per minute, it delivers outstanding productivity for your production line.

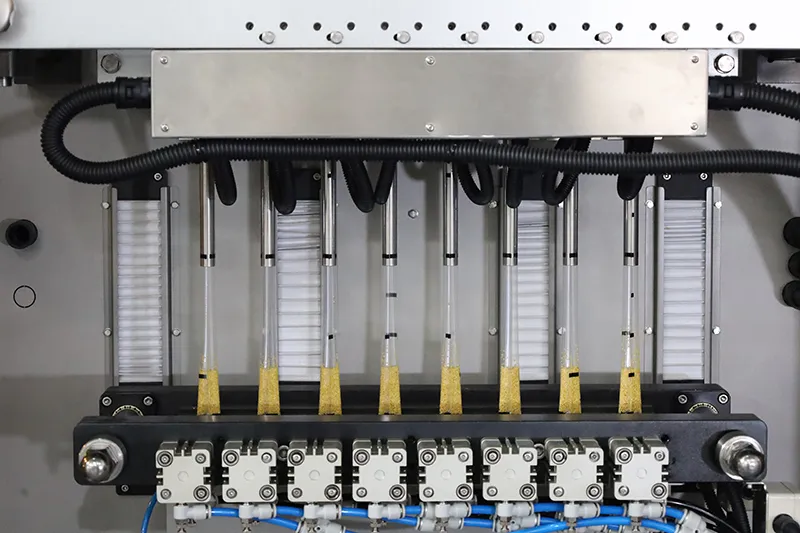

All parts in contact with your materials are designed for quick disassembly and reassembly, simplifying maintenance. The 45° vertical sealing device provides excellent sealing quality and features a center-opening design for easy access during maintenance. Experience efficiency and reliability with this versatile machine. Contact us today to explore how it can meet your packaging needs!

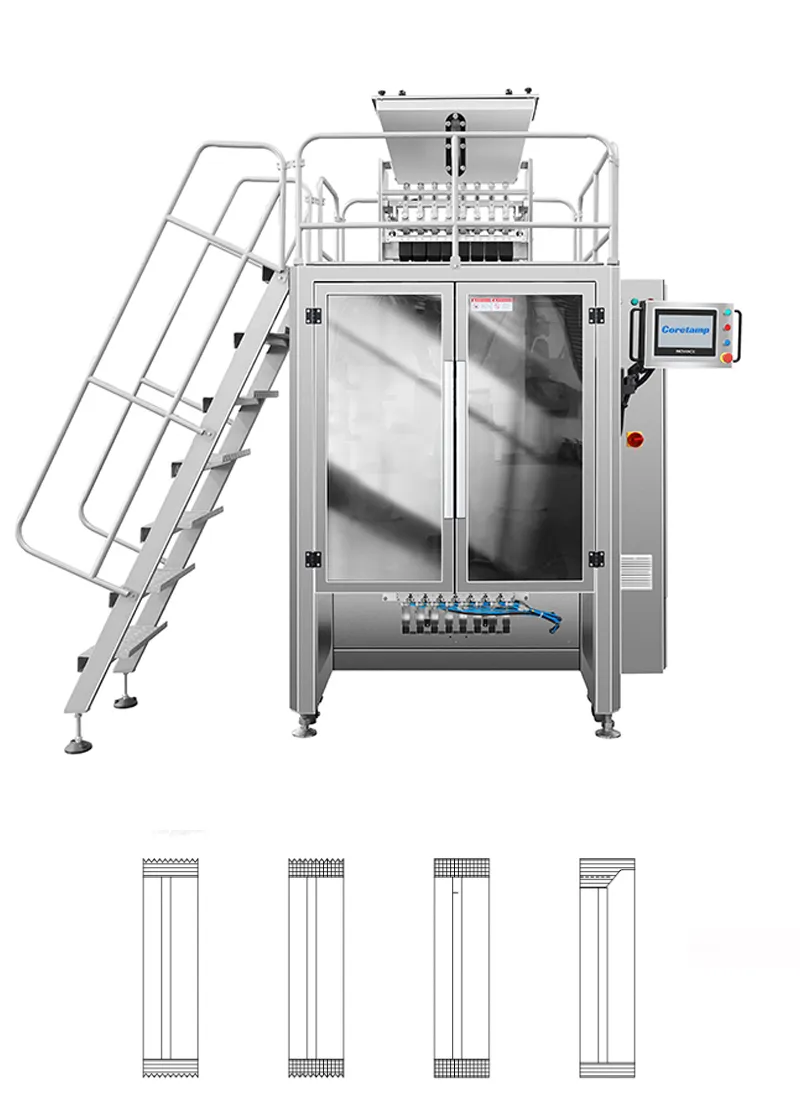

Seal Type: Back Seal
| Model | |
| Number of Packaging Lanes | 4 |
| Dosing System | Oscillating Cup Doser |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.320mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |

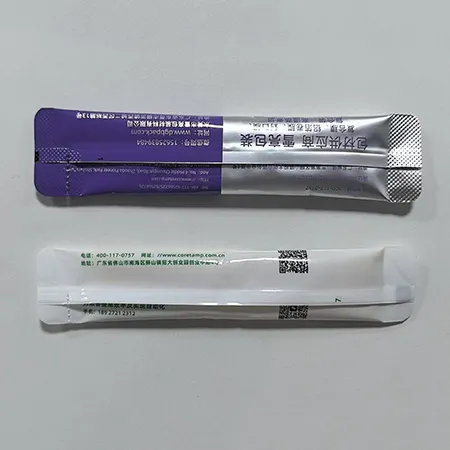

| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 700kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 6 |
| Dosing System | Oscillating Cup Doser |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.500mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 8 |
| Dosing System | Oscillating Cup Doser |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.500mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 10 |
| Dosing System | Oscillating Cup Doser |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.800mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1400kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
