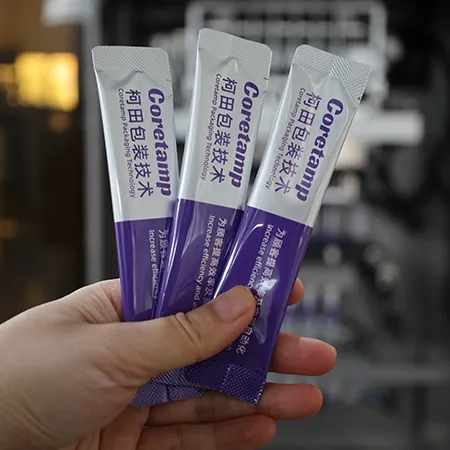

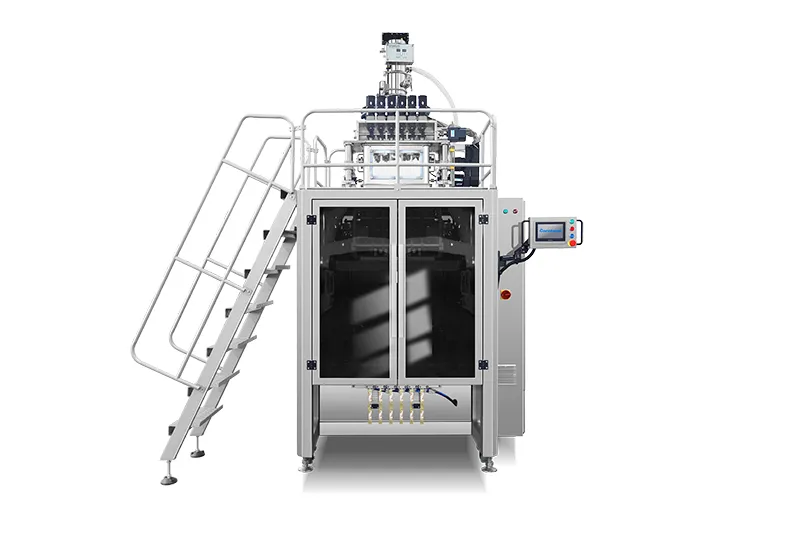

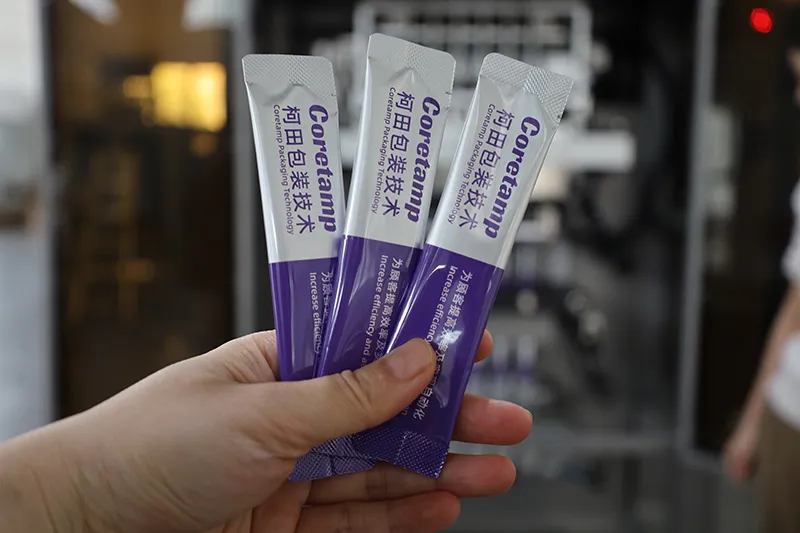

Ideal for automating the packaging of loose powder products, this fully automatic powder packaging machine is widely used in the pharmaceutical and health supplement industries. It’s perfect for handling items like medicinal granules, probiotics, protein powders, meal replacement powders, spirulina powder, instant coffee, lotus root powder, tea powder, pearl powder, and seasonings.
Coffee powder
Probiotics
Chinese medicine powder
Fruit and vegetable powder
Notoginseng powder
Milk powder
Milk tea powder
Spirulina algae powderOur packaging machine is designed with advanced features to elevate your production experience:

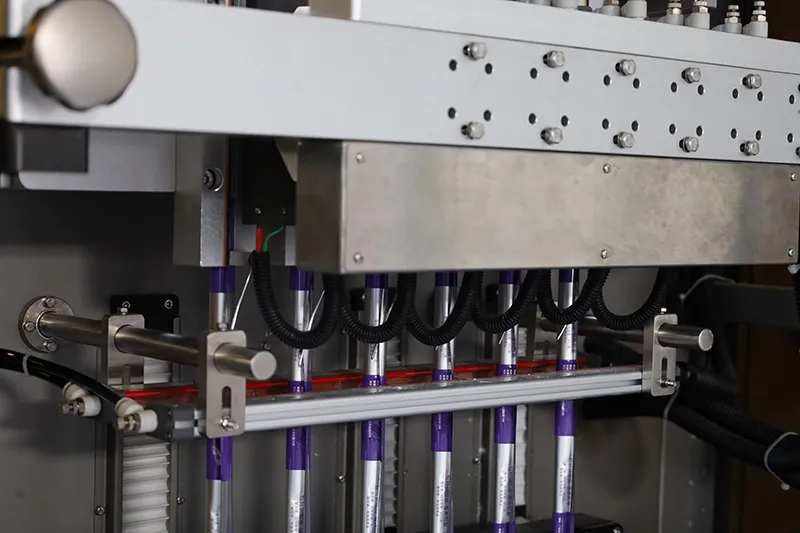

Designed to meet your packaging needs for loose powder products in the pharmaceutical and health supplement industries, the machine offers 4 to 10 lanes of production. Using a customized screw dosing system (auger filler), the screw can be tailored to match your product's mesh size, flowability, and sugar content.
With a maximum film width of 800mm, it produces powder packaging bags ranging from 16–50mm in width and 40–160mm in length. Your production process benefits from adjustable dosing and a rotary refilling system, ensuring both precision and speed. The machine operates at 20–80 cuts per minute, and all material-contacting parts are designed for quick disassembly and reassembly, simplifying maintenance.

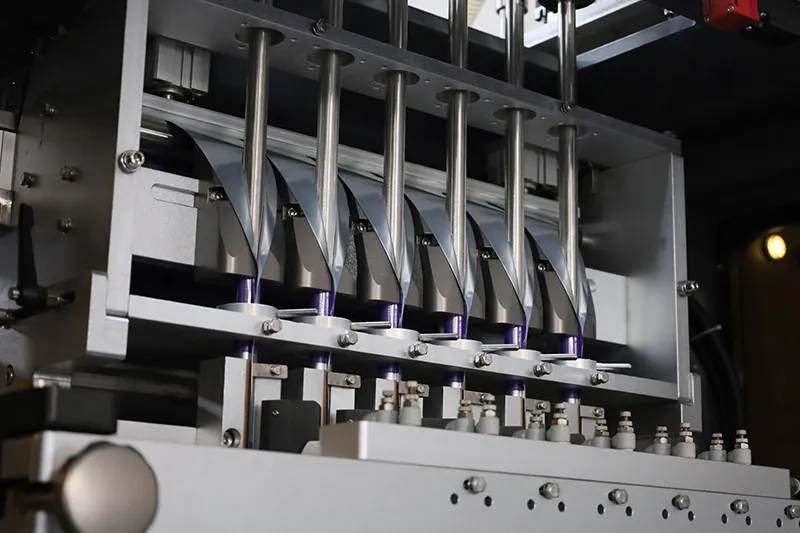

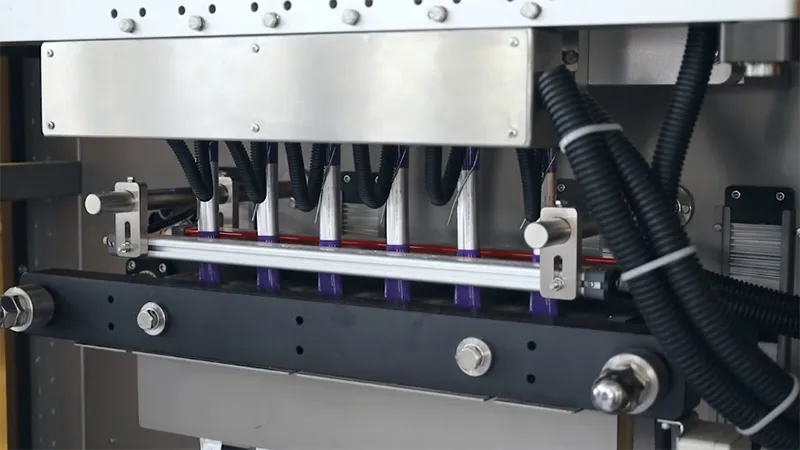

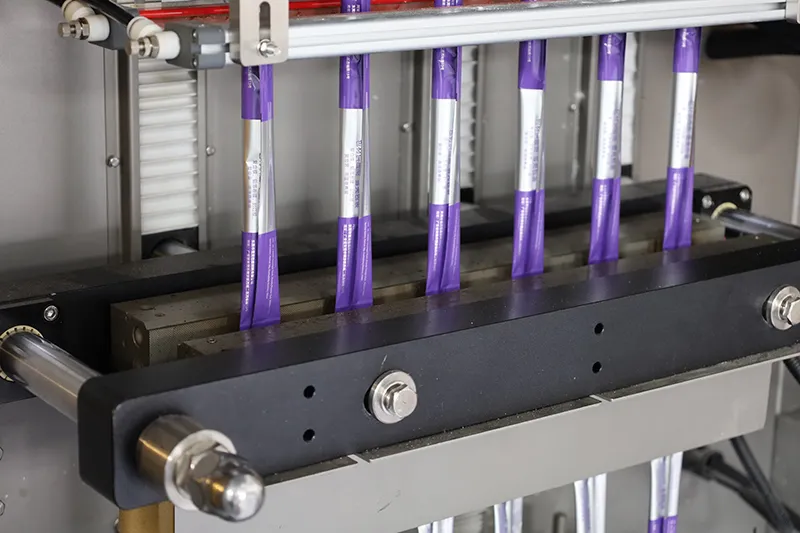

The 45° vertical sealing device delivers superior sealing quality and can be opened from the center, making maintenance even easier. Enhance your production line with this high-performance machine. Contact us today to discuss your requirements!

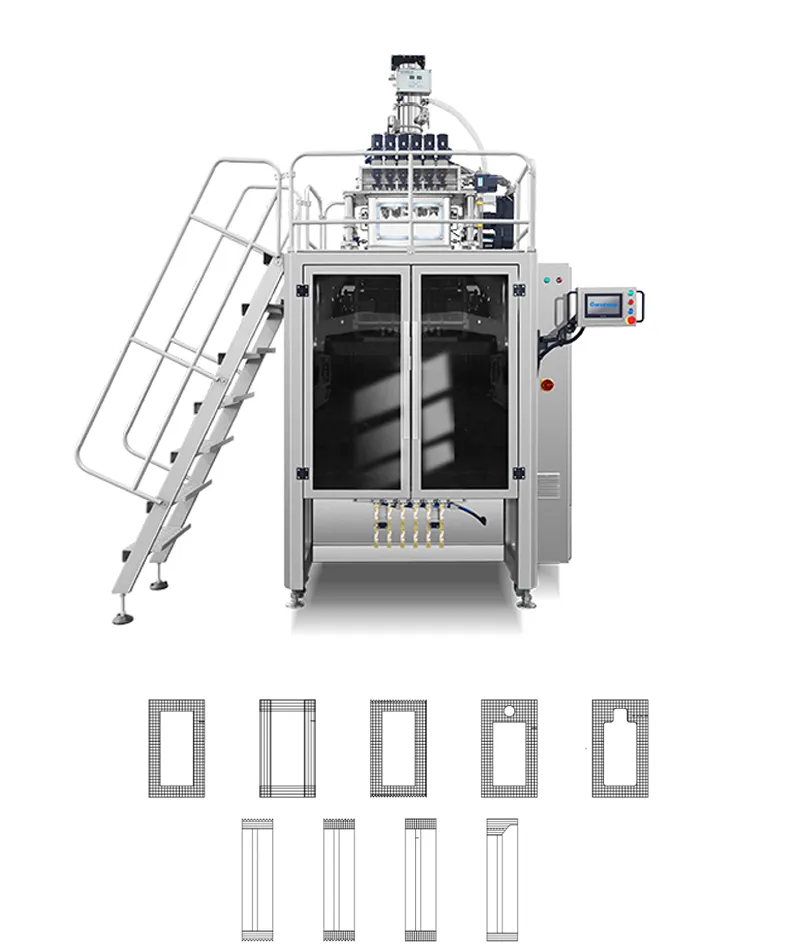

Seal Type: Back Seal
| Model | |
| Number of Packaging Lanes | 4 |
| Dosing System | Auger Filler |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.320mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 700kg |

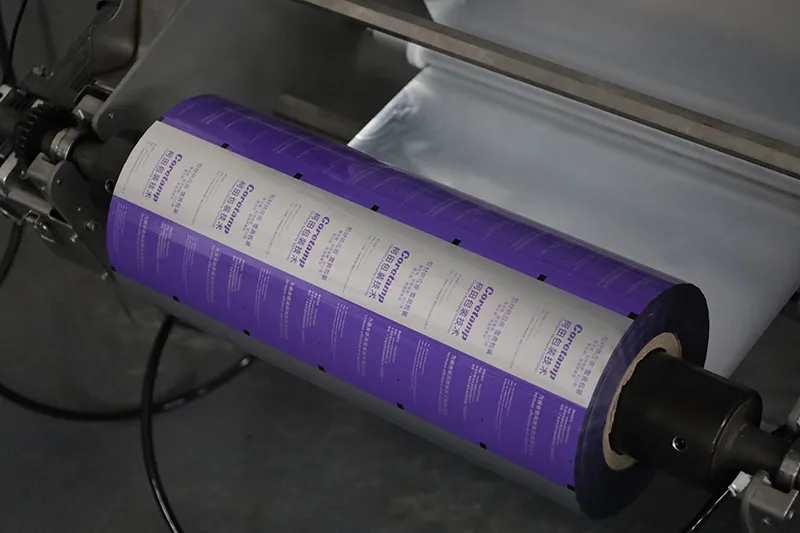

| Film Thickness | 0.06-0.1mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Anti-Static Device, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Screw Air Compressor |
| Model | |
| Number of Packaging Lanes | 6 |
| Dosing System | Auger Filler |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.500mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Anti-Static Device, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Screw Air Compressor |
| Model | |
| Number of Packaging Lanes | 8 |
| Dosing System | Auger Filler |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.500mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Anti-Static Device, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Screw Air Compressor |
| Model | |
| Number of Packaging Lanes | 10 |
| Dosing System | Auger Filler |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.800mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | Back Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1400kg |
| Film Thickness | 0.06-0.1mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Anti-Static Device, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Screw Air Compressor |
Your partner for customizable and efficient packaging solutions
