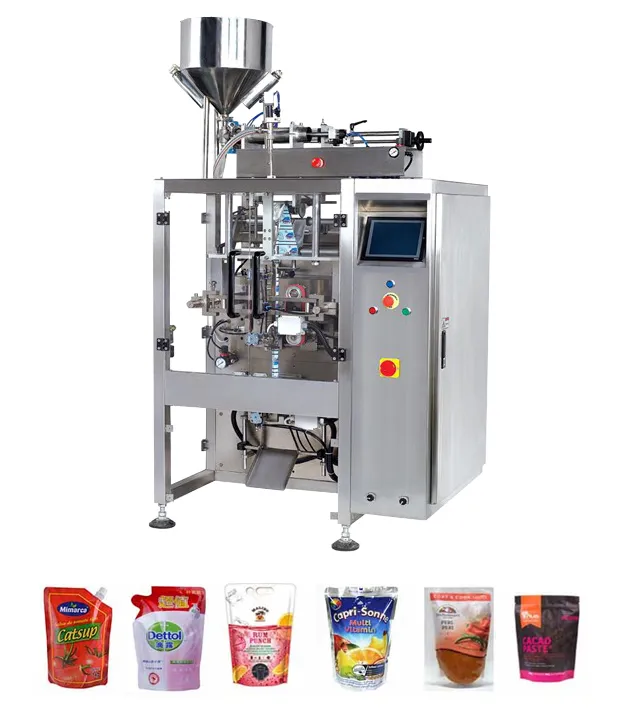

Ideal for packaging standard, viscous, and high-viscosity liquid products, such as peanut butter, ketchup, shampoo, body wash, face cream, sauces, jams, condiments, milk, juice, and mayonnaise.

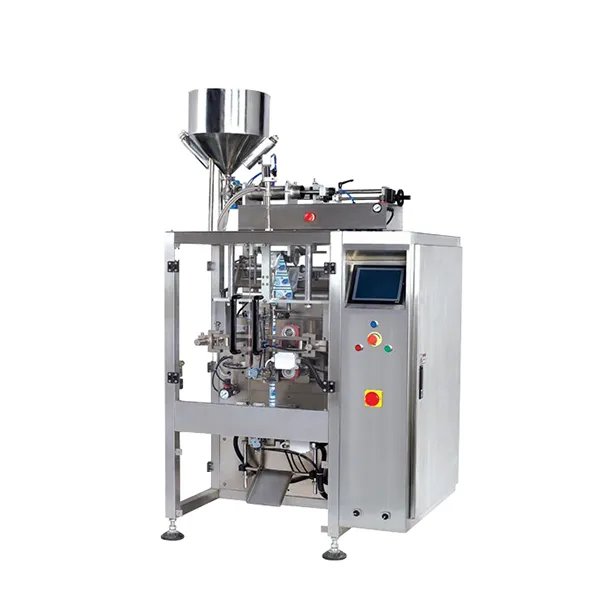

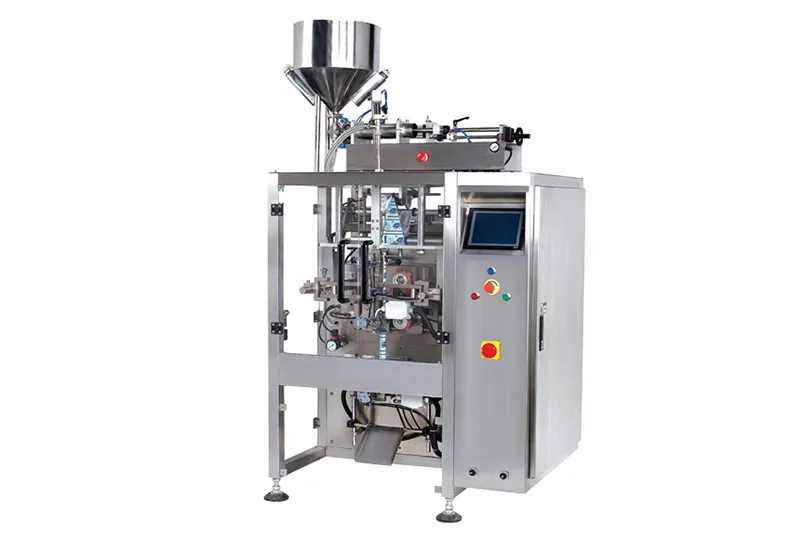

Designed for standard, viscous, and high-viscosity liquid materials, this fully automated packaging system offers smooth control for your production line. It features integrated supply management with an intelligent no-material, no-packaging detection system, ensuring efficiency and minimal waste.

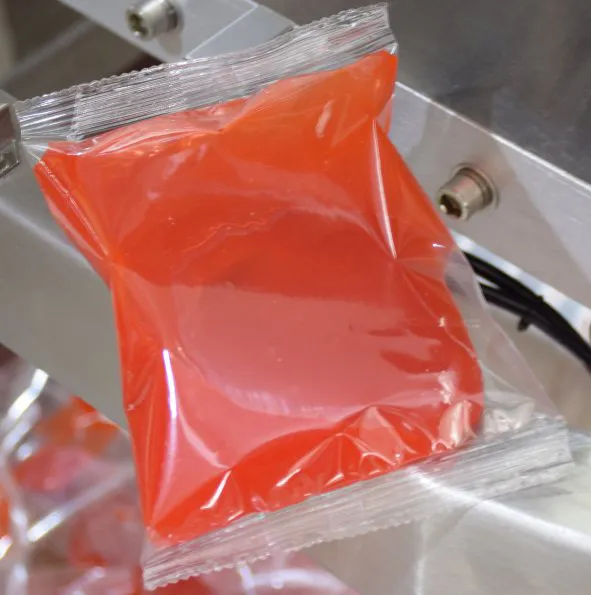

Kinds of Pouches: 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
| Model | |
| Film Width | Max.420mm |
| Bag Length | 80-300mm |
| Bag Width | 60-200mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-3600bags/hour |
| Bag Volume | 2000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3kW |
| Machine Dimensions (L×W×H) | 1217×1015×1343mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
| Model | |
| Film Width | Max.520mm |
| Bag Length | 80-350mm |
| Bag Width | 100-250mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-3600bags/hour |
| Bag Volume | 4000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3kW |
| Machine Dimensions (L×W×H) | 1488×1080×1490mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
| Model | |
| Film Width | 150-620mm |
| Bag Length | 100-450mm |
| Bag Width | 65-300mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-2700bags/hour |
| Bag Volume | 8000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3.2kW |
| Machine Dimensions (L×W×H) | 1488×1180×1550mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
| Model | |
| Film Width | 150-720mm |
| Bag Length | 100-500mm |
| Bag Width | 65-350mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-2400bags/hour |
| Bag Volume | 14000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3.5kW |
| Machine Dimensions (L×W×H) | 1780×1350×2050mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
