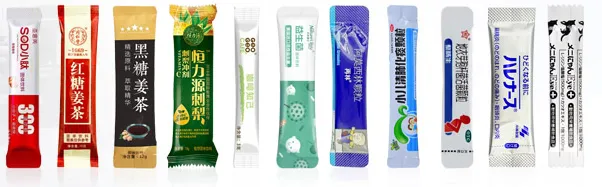

These packaging solutions are widely used across industries such as pharmaceuticals, cosmetics, food, and health products.
Perfect for packaging products like sauces, seasonings, hot pot bases, tomato paste, honey, jam with pulp, creams, facial cleansers, and shower gels, our machines ensure precision and efficiency for your diverse packaging needs.
Olive oil
Soy sauce
Honey
Milk
Lemon juice
Jam (with fruit pieces)
Goji berry puree
Sea buckthorn pureeOur packaging machine is designed with advanced features to elevate your production experience:

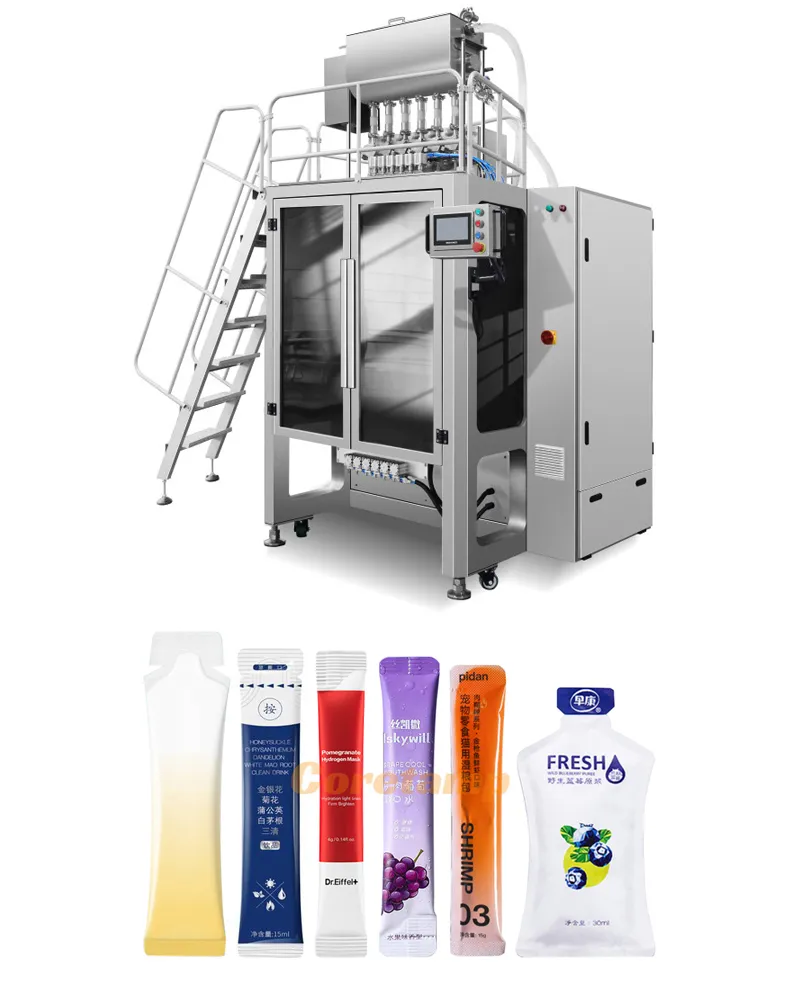

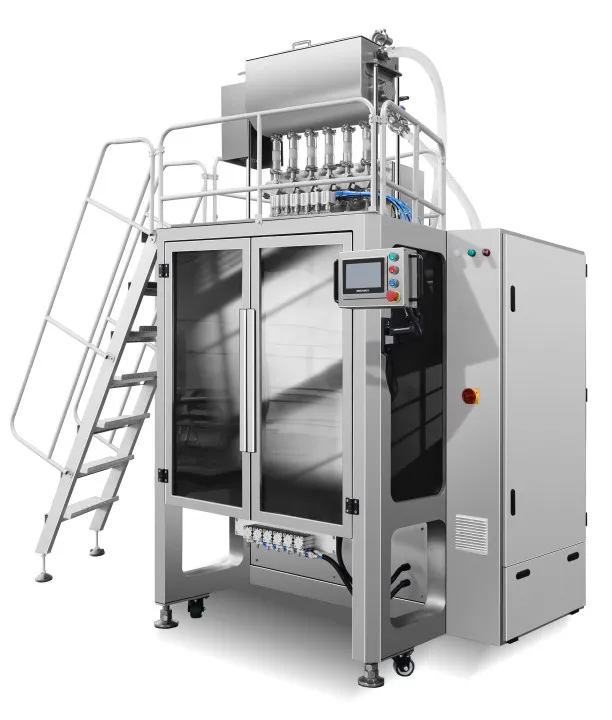

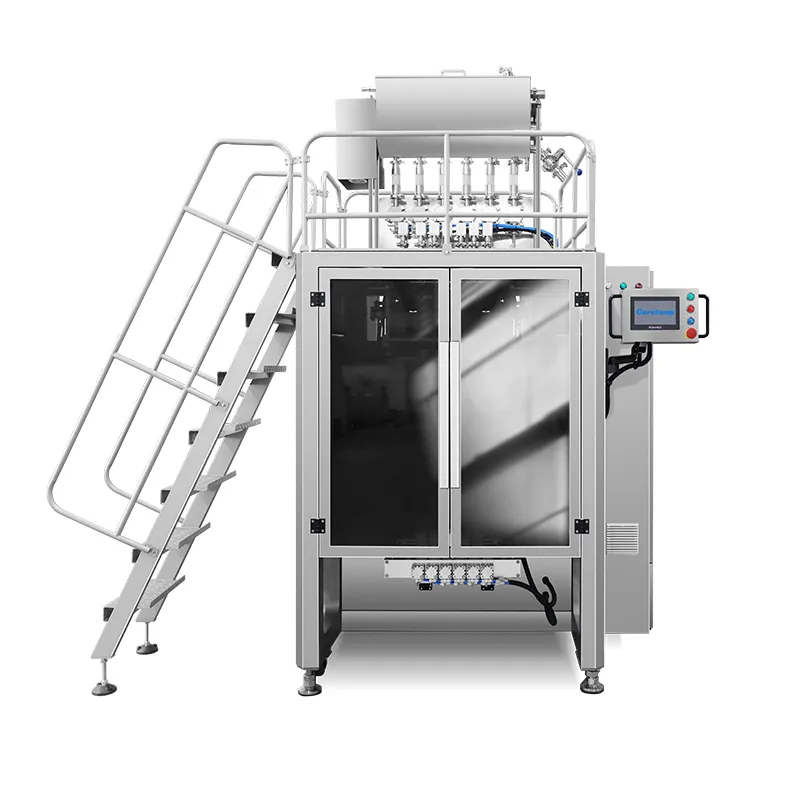

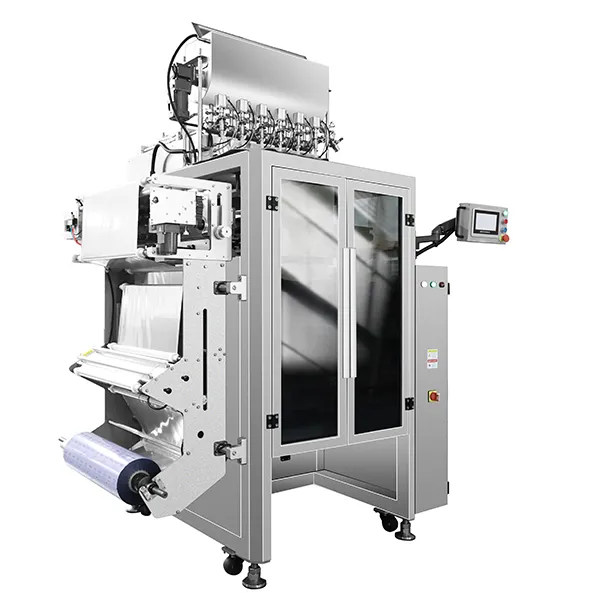

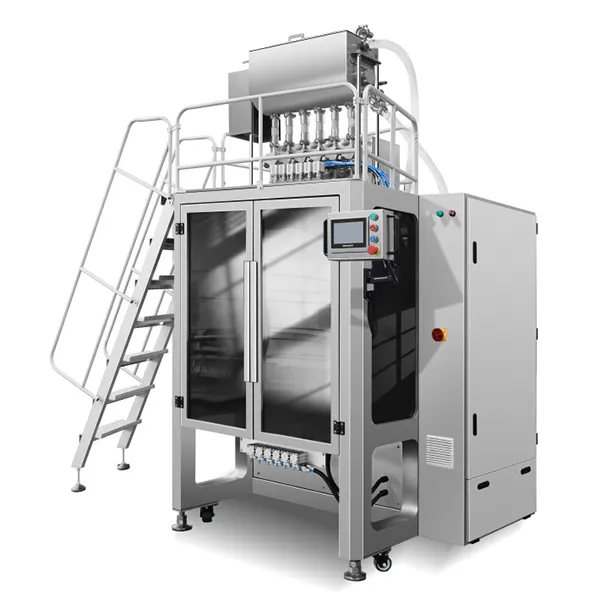

Our machine is designed for your high-viscosity and semi-solid materials, such as pet food, with packaging capabilities ranging from 4 to 10 lanes. It features a piston pump dosing system with high-precision gear pumps crafted from SUS316L stainless steel using CNC machining, ensuring exceptional accuracy and high-speed filling.

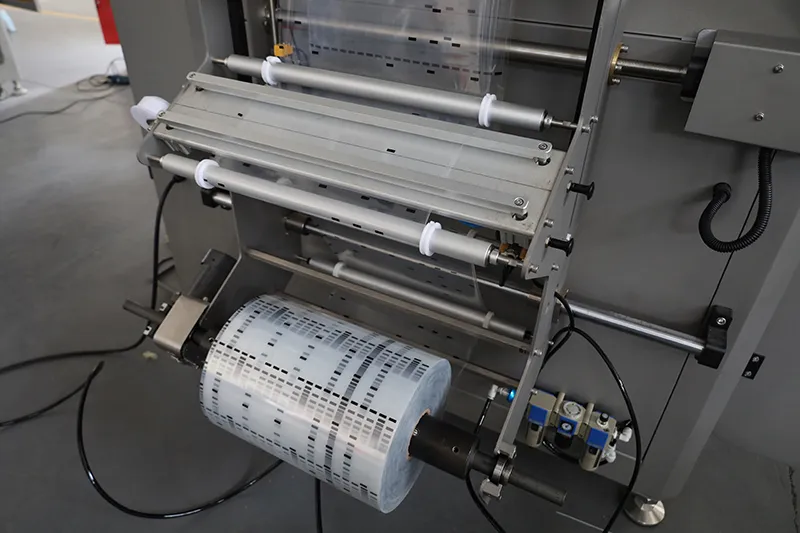

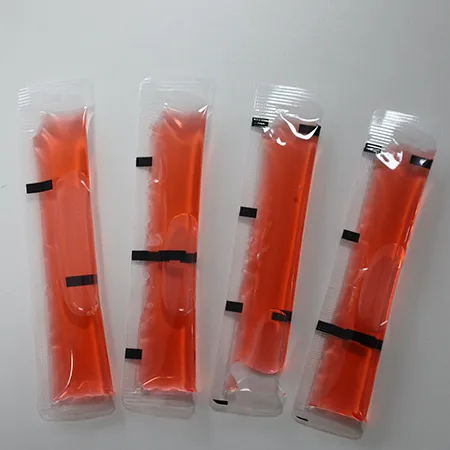

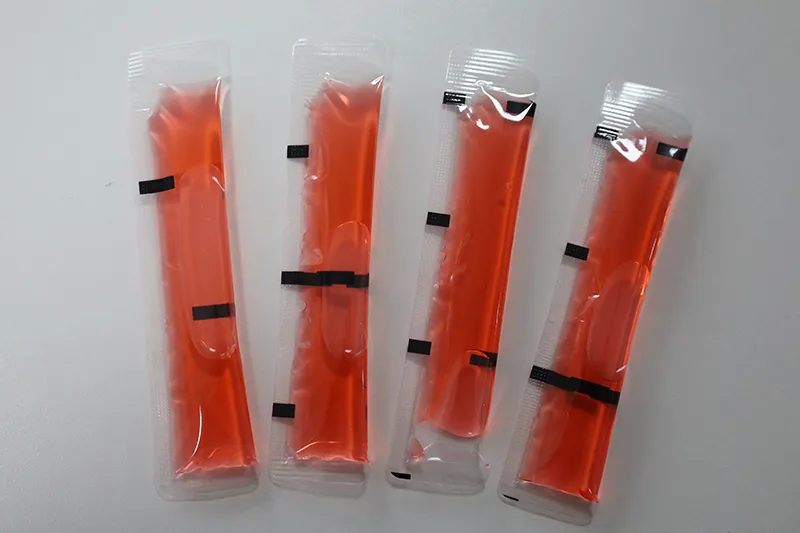

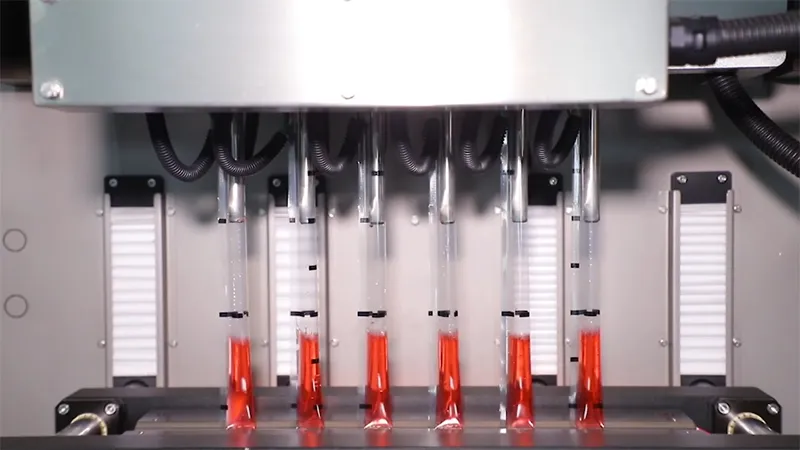

With a maximum roll film width of 800mm, the machine produces liquid packaging bags from 16–50mm in width and 40–160mm in length. Each lane operates with an independent bus servo motor controlling the gear pump for precise filling. The machine includes a double-layer insulated hopper with dual-direction mixing and automatic refilling functionality.

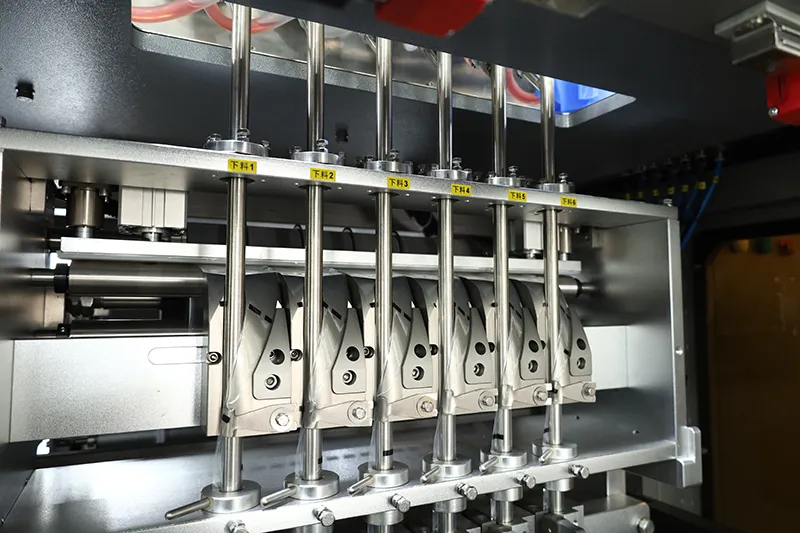

Achieving production speeds of 20–80 cuts per minute, the machine is built for efficiency. All contact parts can be quickly disassembled and reassembled for effortless maintenance. It comes with a standard cleaning system and is compatible with CIP cleaning systems. The 45° vertical sealing device ensures superior sealing quality and opens from the center for easy maintenance.
Enhance your production capabilities with this reliable solution. Reach out today to learn more!
Seal Type: 3 Side Seal
| Model | |
| Number of Packaging Lanes | 4 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.320mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 700kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 6 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.500mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 8 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.500mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 10 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.800mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1400kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
Your partner for customizable and efficient packaging solutions
