Designed for versatility, the advanced packaging solution is ideal for industries such as pharmaceuticals, cosmetics, food, and health products. It handles items like sauces, seasonings, hot pot bases, ketchup, honey, chunky jams, creams, facial cleansers, and body washes with precision.
Olive oil
Soy sauce
Honey
Milk
Lemon juice
Jam (with fruit pieces)
Goji berry puree
Sea buckthorn pureeOur packaging machine is designed with advanced features to elevate your production experience:

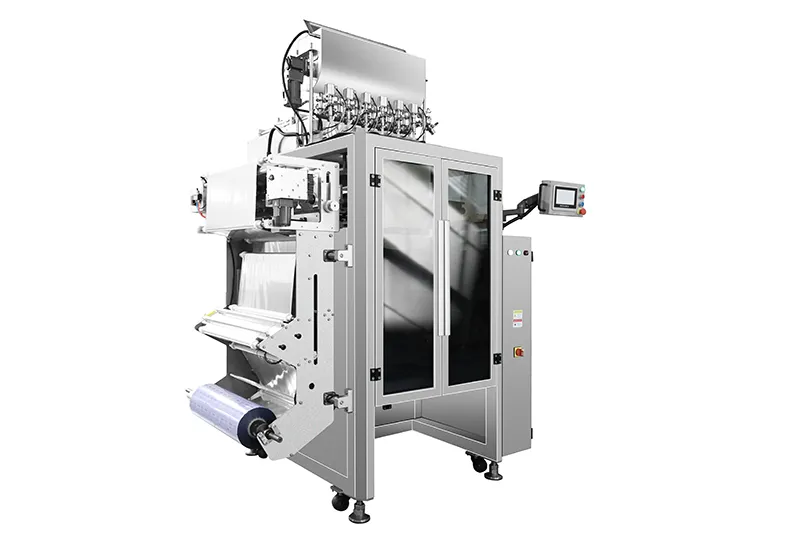

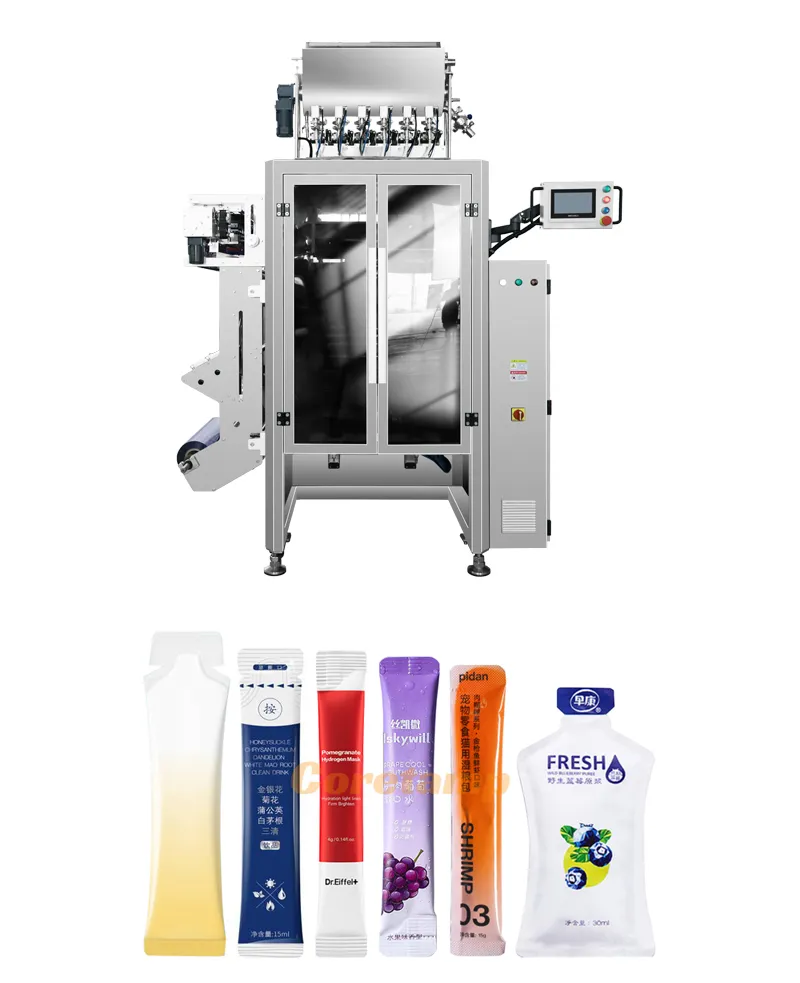

This advanced packaging machine is the perfect solution for your needs when handling semi-solid and high-viscosity materials like pet food. Supporting 4 to 10 lanes, it features a piston pump dosing system with high-precision gear pumps made from SUS316L stainless steel, crafted with CNC technology to ensure reliability and efficiency.

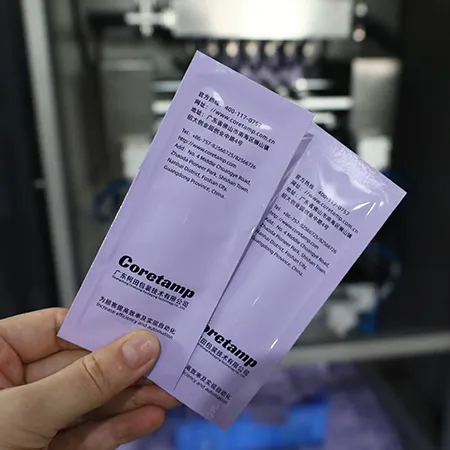

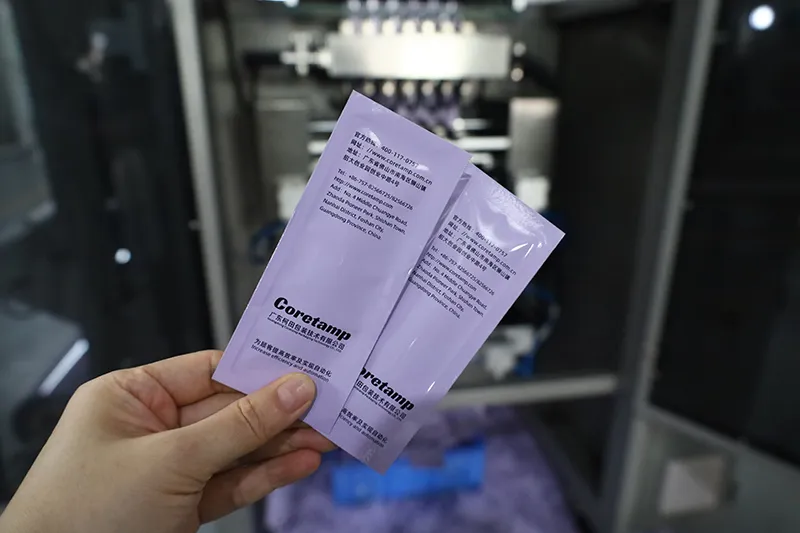

With a maximum roll film width of 900mm, your production line can create liquid packaging bags ranging from 16-50mm in width and 40-160mm in length. Each lane operates independently, driven by a servo motor-controlled gear pump, and is paired with a dual-layer insulated hopper that offers bi-directional stirring and automatic refilling to optimize your workflow.

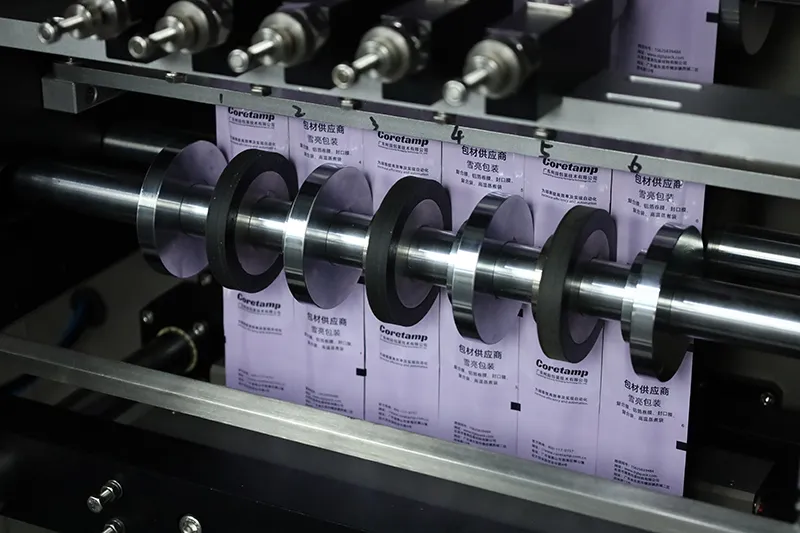

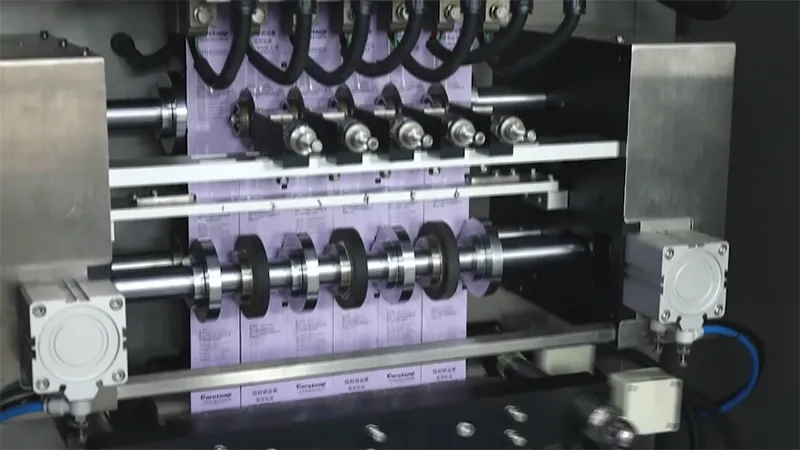

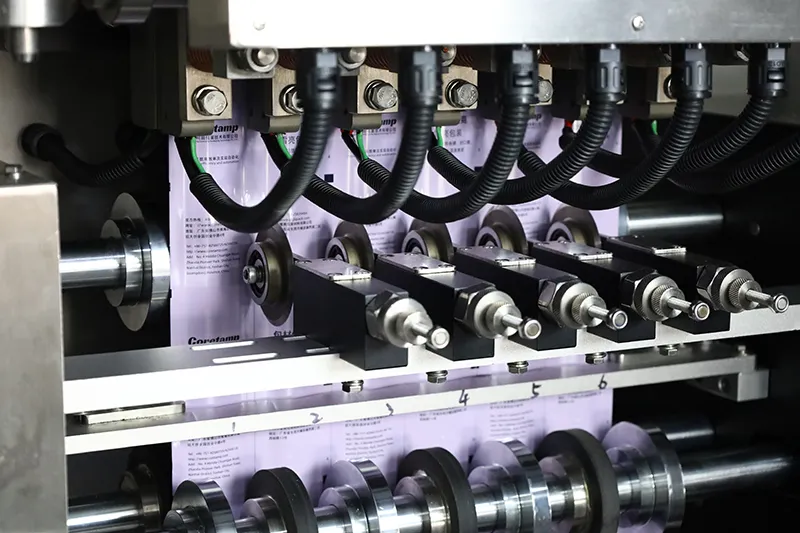

Reaching speeds of 20-80 cuts per minute, this machine guarantees exceptional productivity while being easy to maintain. All parts in contact with your materials can be quickly disassembled and reassembled for hassle-free cleaning. Plus, it comes standard with a general cleaning system or can be equipped with an optional CIP cleaning system. The 45° vertical sealing device ensures superior sealing quality and opens from the center for easy maintenance.
Upgrade your packaging line today with this reliable and versatile solution. Reach out to us to discuss how it can meet your specific needs!
Seal Type: 4 Side Seal
| Model | |
| Number of Packaging Lanes | 4 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |

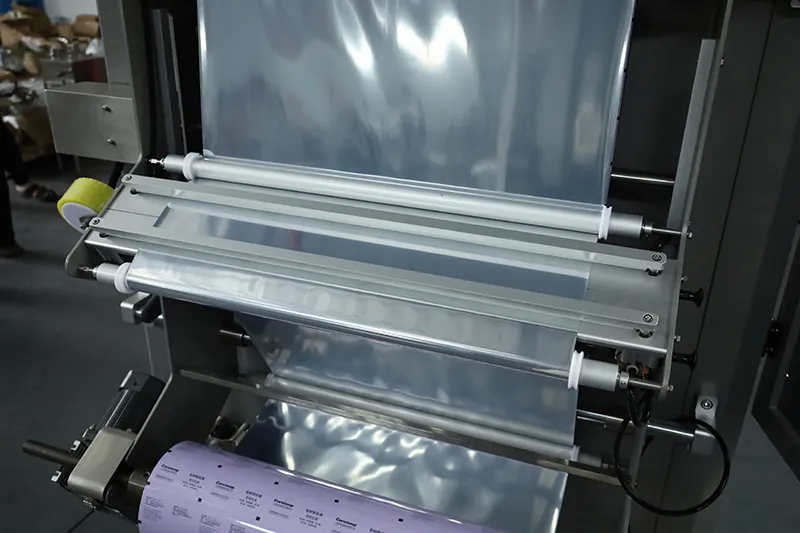

| Film Roll Width | Max.640mm |

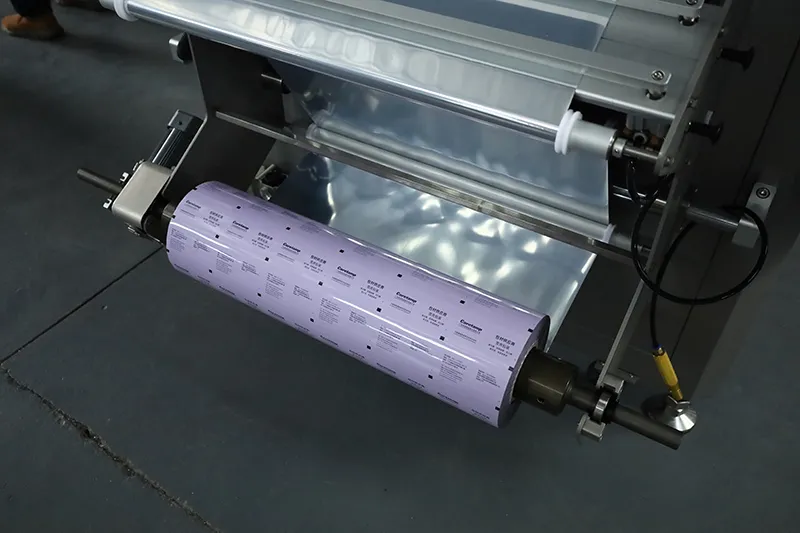

| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 4 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 700kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 6 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.640mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 4 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 8 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.900mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 4 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 10 |
| Dosing System | Piston Pump |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.900mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 4 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1400kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
Your partner for customizable and efficient packaging solutions
